Anatomy of a Real-Time Voice Agent

Introduction #

In the rapidly evolving landscape of conversational AI, it is easy to get lost in the specifics of its applications—whether it’s a voice agent for healthcare or a appointment scheduler. However, for this case study, I chose to pivot from the application to the abstraction.

Rather than detailing a single use case, I am focusing on the fundamental architecture that powers the entire ecosystem. Why? Because beneath the surface, nearly every modern voice agent platform relies on the same core structural patterns. The distinction between a 'therapist bot' and a 'sales bot' often comes down to just three variable components: the System Prompt, the Tool Execution Layer, and the SaaS Wrapper.

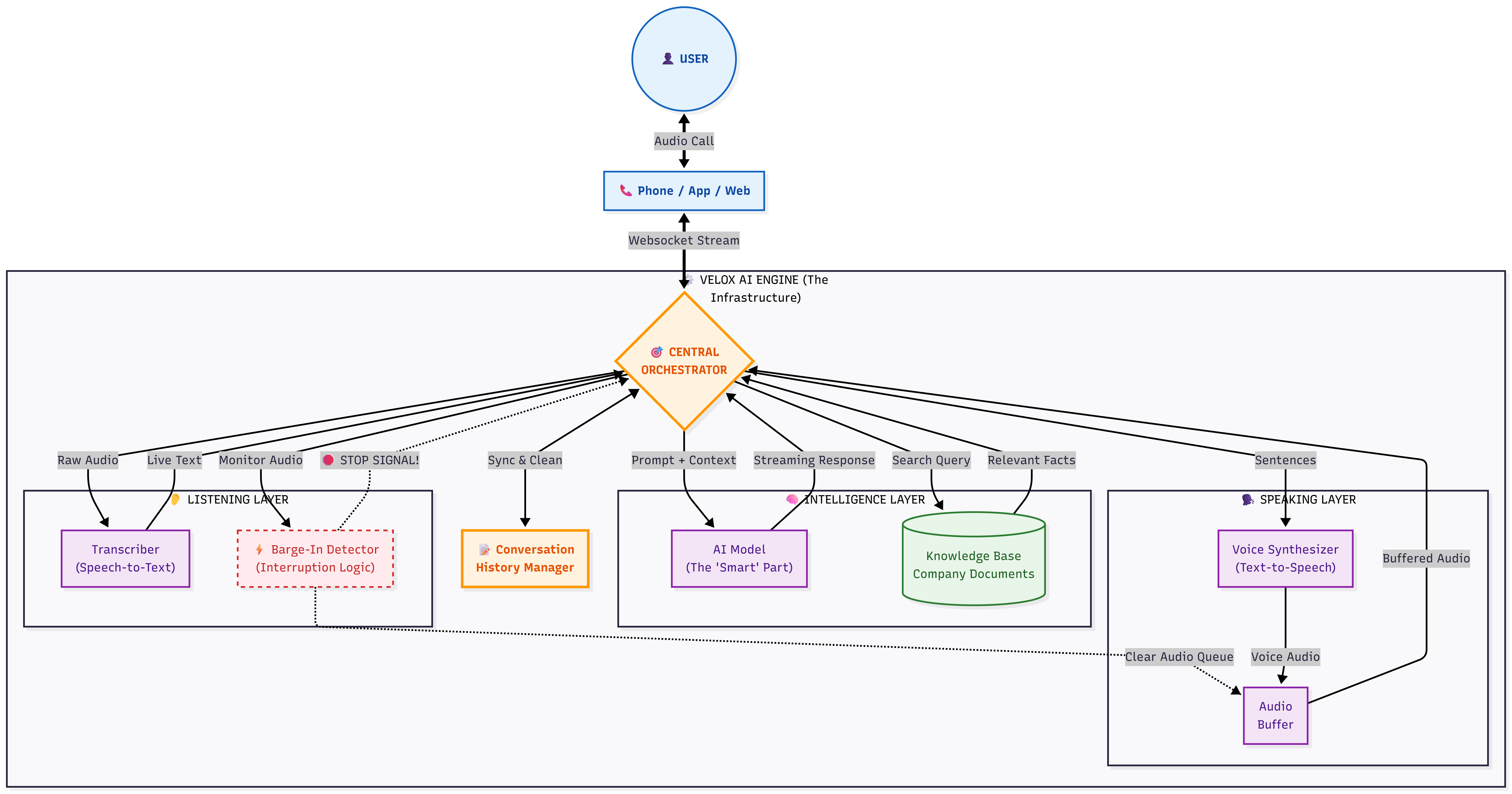

Fig 1. High-level architecture of a real-time voice agent pipeline — from microphone to speaker.

The Data Journey (Live View)

Streaming Voicebots vs. Turn-Based Chatbots #

While Voicebots and Chatbots share the same "brain" (the LLM), their nervous systems are entirely different. To the end-user, the difference is just the medium. To an engineer, it is the difference between a discrete Request-Response cycle and a continuous Full-Duplex stream.

Core Components #

Every real-time voice agent is built from six core modules. Think of them as LEGO blocks — interchangeable, independently upgradable, but all essential to the final product.

1. Speech-to-Text (STT)

The Ears. The STT engine (e.g., Deepgram, Whisper, AssemblyAI) is responsible for converting raw audio streams into text. In a real-time architecture, standard transcription is insufficient. The engine must support streaming transcription via WebSockets, returning "interim results" (partial text) milliseconds after the user speaks. With streaming architecture, the final transcript is ready almost instantly after the user is done speaking.

2. Large Language Model (LLM)

The brain. The LLM receives the STT transcript and generates a response. For voice agents, the LLM must support streaming token output — emitting tokens one at a time rather than waiting for the full response. This is what enables the TTS to start speaking before the LLM has finished "thinking."

3. Text-to-Speech (TTS)

The mouth. TTS engines like ElevenLabs, Deepgram, or Sarvam AI convert text into natural-sounding audio. Modern TTS systems accept streaming text input and produce streaming audio output — meaning they can start speaking the first sentence while the LLM is still generating the second.

4. Voice Activity Detection (VAD)

The Traffic Cop. VAD is the unsung hero of voice interfaces. Its sole job is to distinguish human speech from silence, background noise, or non-speech vocalizations (like heavy breathing). A sophisticated VAD algorithm doesn't just detect sound; it manages the turn-taking logic. It determines if a pause is a comma (keep listening) or a full stop (start processing), preventing the agent from constantly interrupting the user.

5. The Orchestrator

The Conductor. The Orchestrator is the central nervous system that binds the components together. It is usually a custom backend service (Node.js/Python/Go) that manages the state of the conversation.

• Pipeline Management: It pipes the output of the STT directly into the LLM and the output of the LLM into the TTS.
• State Management: It handles conversation history, executes external tool calls (APIs), and manages authentication.
• Interrupt Handling: It listens for "Barge-In" events and instantly kills the audio stream if the user speaks.

# Simplified orchestrator flow
async def handle_audio_stream(websocket):
    async for audio_chunk in websocket:
        # 1. Feed to STT
        transcript = await stt.transcribe(audio_chunk)

        if transcript.is_final:
            # 2. Feed to LLM (streaming)
            async for token in llm.stream(transcript.text):
                # 3. Feed to TTS (streaming)
                audio = await tts.synthesize(token)
                await websocket.send(audio)

6. RAG (Retrieval-Augmented Generation)

The Memory. While the LLM provides reasoning and language capabilities, it lacks specific knowledge about your business or user data. RAG bridges this gap by retrieving relevant context from a Vector Database (Pinecone, Qdrant, etc.) in real-time. Before the LLM generates a response, the system searches the knowledge base for semantic matches to the user's query and injects that information into the prompt, ensuring accuracy and reducing hallucinations.

The "Barge-In" Problem #

Barge-in is what happens when the user interrupts the agent mid-sentence. In a human conversation, this is natural — we do it constantly. But for a voice agent, it's an engineering nightmare.

When the user barges in, the system must simultaneously: stop TTS playback immediately, flush any queued audio from the buffer, capture the new user utterance via STT, and route the new transcript to the LLM with the correct context. All of this must happen within ~100ms, or the user will hear overlapping audio.

# Barge-in handling
async def on_user_speech_detected():
    # 1. Immediately stop TTS playback
    tts.stop()
    audio_buffer.flush()

    # 2. Cancel pending LLM generation
    llm.cancel_current_stream()

    # 3. Log partial response for context
    partial = tts.get_spoken_text_so_far()
    conversation.add_partial_response(partial)

    # 4. Resume listening for new utterance
    await stt.resume()

Echo cancellation adds another layer of complexity. The user's microphone picks up the agent's own voice coming from the speaker, creating a feedback loop. Without acoustic echo cancellation (AEC), the STT engine would transcribe the agent's own output as user speech and go in an infinite loop.

The Secret Sauce (Optimizations) #

Latency is the single most important metric for a voice agent. Every millisecond counts. Here are the key optimization techniques used in production systems:

1. Streaming Tokens #

Instead of waiting for the LLM to generate a complete response, tokens are relayed to TTS in real-time. To ensure natural intonation, tokens are typically divided into chunks of an entire sentence before being sent to the TTS engine. This allows the engine to begin synthesizing audio from the first sentence while the LLM continues generating the next. This alone can cut TTFB by 60-70%, as the audio generation happens in parallel with text generation.

2. The Latency Budget #

To achieve a conversational feel, we must adhere to a strict latency budget. Human conversation typically accepts a gap of ~200-500ms. Anything above 800ms feels like "thinking," and above 1.5s feels disjointed. Here is the breakdown:

3. Latency Masking #

The most clever optimization: use filler audio ("Let me check that for you...", "Hmm...") or strategic pauses to mask backend processing time. The user perceives engagement rather than silence. Some systems even use the LLM to generate contextually appropriate filler phrases based on the user's intent, buying valuable seconds for the main model to compute.

4. Modular Architecture #

A monolithic approach fails at scale. Instead, we use a modular design where no specific model is hardcoded. By standardizing a common input and output schema for each component (STT, LLM, TTS), the pipeline ensures consistent operation regardless of the underlying engine. This abstraction grants users the flexibility to choose any model—swapping GPT-4 for Llama-3 or Deepgram for Whisper—making the system highly scalable and future-proof without rebuilding the entire architecture.

5. Smart Caching (Semantic Router) #

The fastest inference is the one you don't run. In customer support, roughly 40% of queries are identical ("Reset my password", "Where is my order?"). By implementing a Semantic Cache, we embed the incoming transcript and search a vector database for similar past queries. If a match is found with high confidence (>0.95), we skip the LLM entirely and serve a pre-computed response, cutting latency from ~800ms to ~50ms.

Use Cases #

From an architectural perspective, a Voice Agent is just a generic "audio-in, audio-out" pipeline. The core infrastructure—WebSockets, VAD, STT, LLM, TTS—does not care if it is a doctor, a dungeon master, or a flight attendant.

Once you have built the Core Engine, you can pivot to entirely new industries by changing just three configuration files:

By decoupling the Engine from the Implementation, we can build highly specific, high-value tools without rewriting the backend code. Here are three architectural configurations for use cases beyond simple scheduling.
